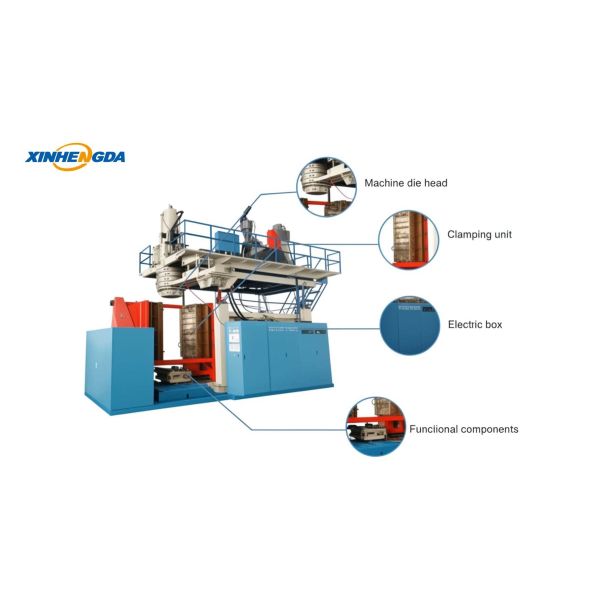

Professional Production of XHD1000L Full-Automatic Plastic Blow Molding Equipment
The XHD1000L Full-Automatic Plastic Blow Molding Machine comes in two configurations: the single-screw variant (XHD1000FZ single screw) and the twin-screw alternative (XHD1000FZ double screw). Engineered specifically for float manufacturing processes, this unit utilizes HDPE and HMW-HDPE as its primary raw materials, boasting fully automated workflows, elevated production capacity, and efficient raw material utilization. Holding both CE and SGS certifications, it includes complimentary on-site installation, commissioning services and hands-on training, paired with a 12-month comprehensive warranty covering the entire machine and its associated molds.
1.Material Processing: IKV-designed screw achieves efficient plasticization and uniform mixing, with a melting capacity of 280KGS.
2.Molding Control: Moog 200-point wall thickness controller ensures uniform product thickness and supports wide-range weight adjustment.
3.Automatic Operation: Robot automatically takes out products; 5-function blow seat completes air blowing, exhausting, sealing and other processes, achieving full automation.
4.Temperature Control: Peak-shifting progressive heating method, separate temperature control for die head and screw, reducing energy consumption.
5.Easy Maintenance: Independent pneumatic station and manifold design for convenient inspection and operation, with tidy and unobstructed pipelines.
1.Cost Efficiency: Cuts down raw material consumption by 25%-35% in contrast to rotational molding tanks; the variable frequency control system helps lower overall power usage.
2.Enhanced Productivity: Boasts higher production output than rotational molding equipment; the full production line needs merely 3–4 workers for operation, while a standalone unit can be managed by two female staff members.
3.Optimal Product Quality: Delivers finished goods with far superior impact resistance over rotational molding tanks, along with outstanding consistency in wall thickness.
4.Stable Component Setup: Incorporates premium parts from renowned manufacturers including , Delta and MOOG, which guarantees exceptional operational stability.
5.Comprehensive After-sales Support: Provides complimentary on-site installation and professional training, a 1-year warranty period, as well as free replacement parts for troubleshooting and maintenance.
1.Structural Design: Elevating machine frame, multi-row screw hole backplate, easy mold change (hydraulic drive, moving distance 1600MM), suitable for various float production.
2.Precise Control: Taiwan Delta servo hydraulic system with fast response and pressure rise, saving over 40% energy; PLC automatic temperature control, multilingual operation interface (including customer's native language).
3.Durable Material: Core components adopt high-quality materials such as 38CrMoAl and 45# steel; cast steel elevator, Schneider solid-state relay (AC contactor for high-temperature areas).
4.Safety & Stability: Equipped with machine protective cover and guardrail; dual protection of cooling system (barrel air cooling + feeding area water cooling), adapting to indoor environment of 0-45℃.
Specifically engineered for the production of float products, it is applicable to large-batch manufacturing of HDPE float items such as maritime buoys, vessel floats and floating bodies for water-borne platforms, with wide application in aquaculture industry, marine engineering projects, ship supporting facilities and other domains.
